1966 Chevrolet Corvette

632 CI Merlin Block
Brodix BB3 CNC Heads
Manley Pro Series Crank
Callies Compstar Extreme Rods
Comp Cams Solid Roller Cam/Johnson Roller Lifters, .714 LIFT, .270 IN/.280 EX @ .050, 110 Lobe Separation
Hilborn EFI with Holley HP Fuel Management

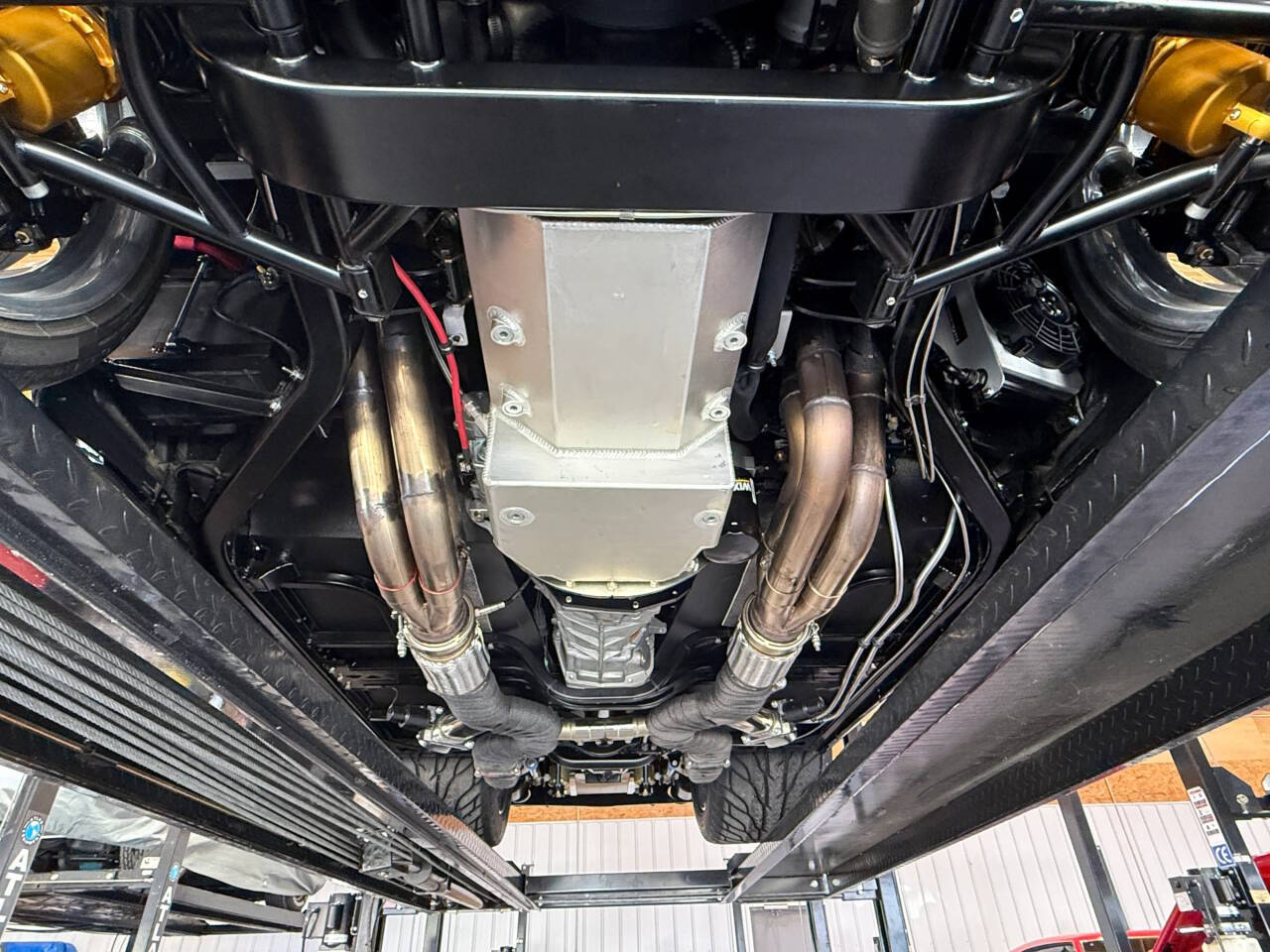

Custom Built Stainless Headers and 4” Exhaust system
Holley/Hillborn 8 Stack EFI Fuel Injection
Holley HP EFI CPU
Holley Crank Trigger Ignition
Vintage Air Front Runner Bracket/Pulley System
Tremec T56 6 Speed Transmission 2.97 1st gear, .74 5th, .50 6th
Mantic Clutch BBC to T56 Ceremetallic- 9 ?” Dual Disck rated 1010ft lbs of Torque
Quick Time BBC to T56 SFI Steel Bell Housing
Art Morrison Chassis with 2” Stretched Wheelbase “100 inches”
10 Point Roll Cage
Power Rack and Pinion
4 Link Rear Suspension
4 Wheel Strange Coil Over Shocks
Strange Fabricated 9” narrowed Rear End with 4.11 Gears
Boyd Codington Twisted Knoxville Wheels
19x8 Front Wheels Wrapped in 225/40 r19 Firestone Fire Hawk Indy 500
20x15 Rear Wheels Wrapped in 31x18 r20 M/T
Brakes Front Wilwood 140-9920-D Pro Spindle 14” Rotor SL6 Brake Kit
Rear Wilwood 140-10012-D 14” Rotor with SL4 with Park Kit
Wilwood Master Cylinder-DOT 5 Fluid
63 Split Window Conversion-Dynamics Corvette Kit
63 Front Clip
Rear Wheel Openings Enlarged and Moved Back 3 Inches
Flush Mount Glass
Enlarged Front Grill to Accommodate Extra Large Radiator
Complete Custom Aluminum Floor Pans
Custom Aluminum Firewall, Inner Fenders, Radiator Assembly
Aluminum Rear Wheel Stubs
Custom 20 Gallon Fuel Tank
Linear Actuated Power Hood Lift with Power Locks
LED Front Turn Signals in Front Bumpers
Custom Smooth Rolled Rocker Panels
Custom Billet Grill and Front Corvette grill emblem
Custom Billet machined exhaust exits bezels
3D printed custom fit wiper grills
Tucked and stretched bumpers
All black chrome
Paint - restoration shop 1905AL base coat/restoration shop CL3245 clear
Complete custom interior - dash, built door panels, headliner, floor pans with removable tunnel
Removable steering wheel
TMI seats
Holley 12.3 553-111 digital pro dash
Raspberry Pi 3 model B touch screen computer
Kenwood DDX99055 stereo
Front Wilwood 140-9920-D pro spindel 14” rotor SL6 brake kit
Rear Wilwood 140-10012-D 14” rotor with SL4 W/park kit
Wilwood WIL-260-9439-BK master cylinder-DOT 5 fluid
Rebel wiring harness located behinds drivers kick panel
Holley HP ECU located behind Raspberry Pi
Holley ignition module installed behind dash
Guard Dawg PBSI module located behind dash
Ignition coil located between rear of engine and firewall
Headlight rotation module located behind drivers side kick panel
Raspberry Pi relays located under dash beneath glove box
